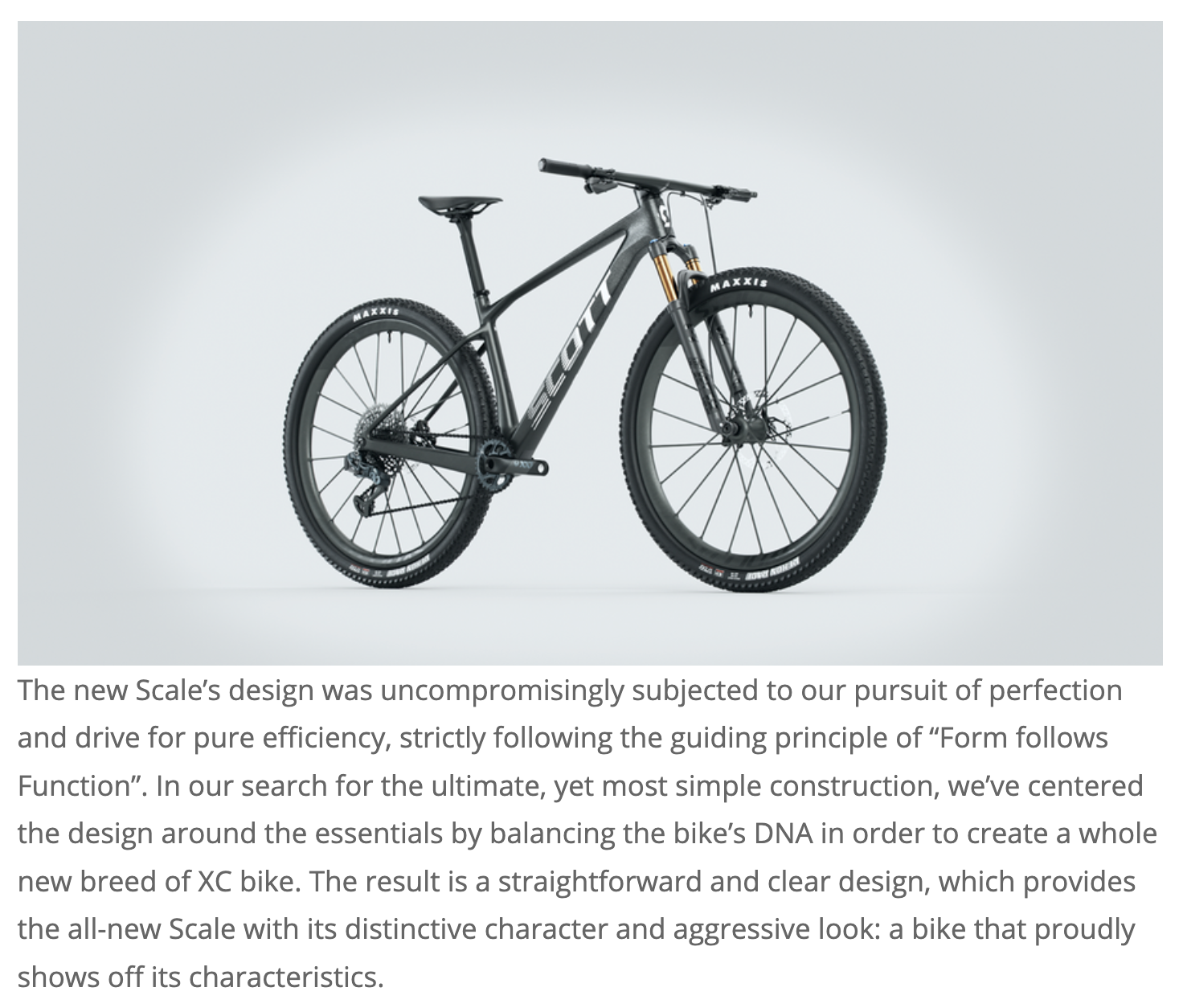

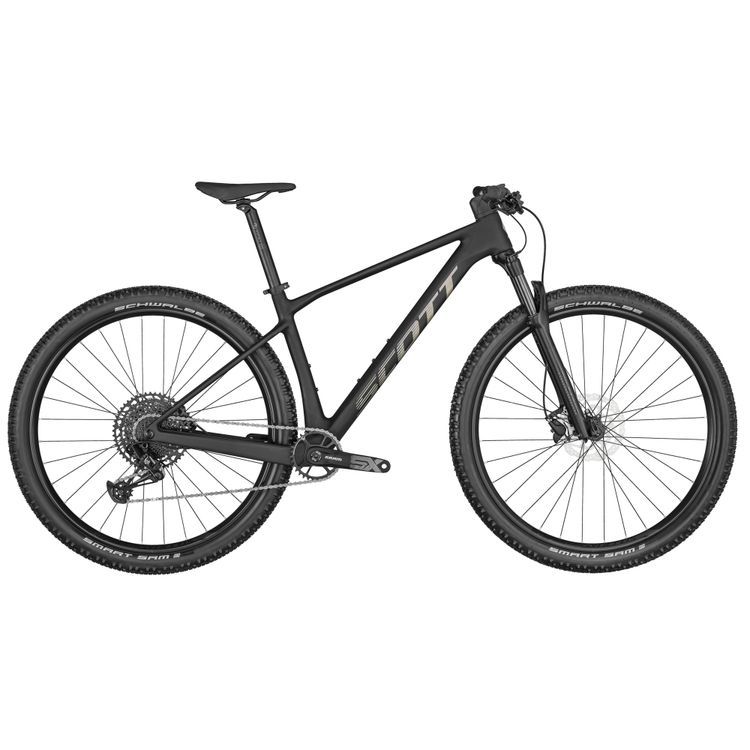

SCOTT Scale 940

Balancing the Scale’s DNA , we’ve created a whole new breed in the world of hardtail mountain bikes. A racing inspired geometry, coupled with a straightforward and sharp design provides the all-new Scale 900 line with its distinctive character and aggressive look - a bike that proudly flaunts its definitive characteristics. This rig is ready for just about anything, are you?

Please note that bike specifications are subject to change without prior notice

• Frame

  Scale Carbon HMF
  Adjustable head angle / Syncros Cable Integration System
  Advanced Shock & Standing Damping System

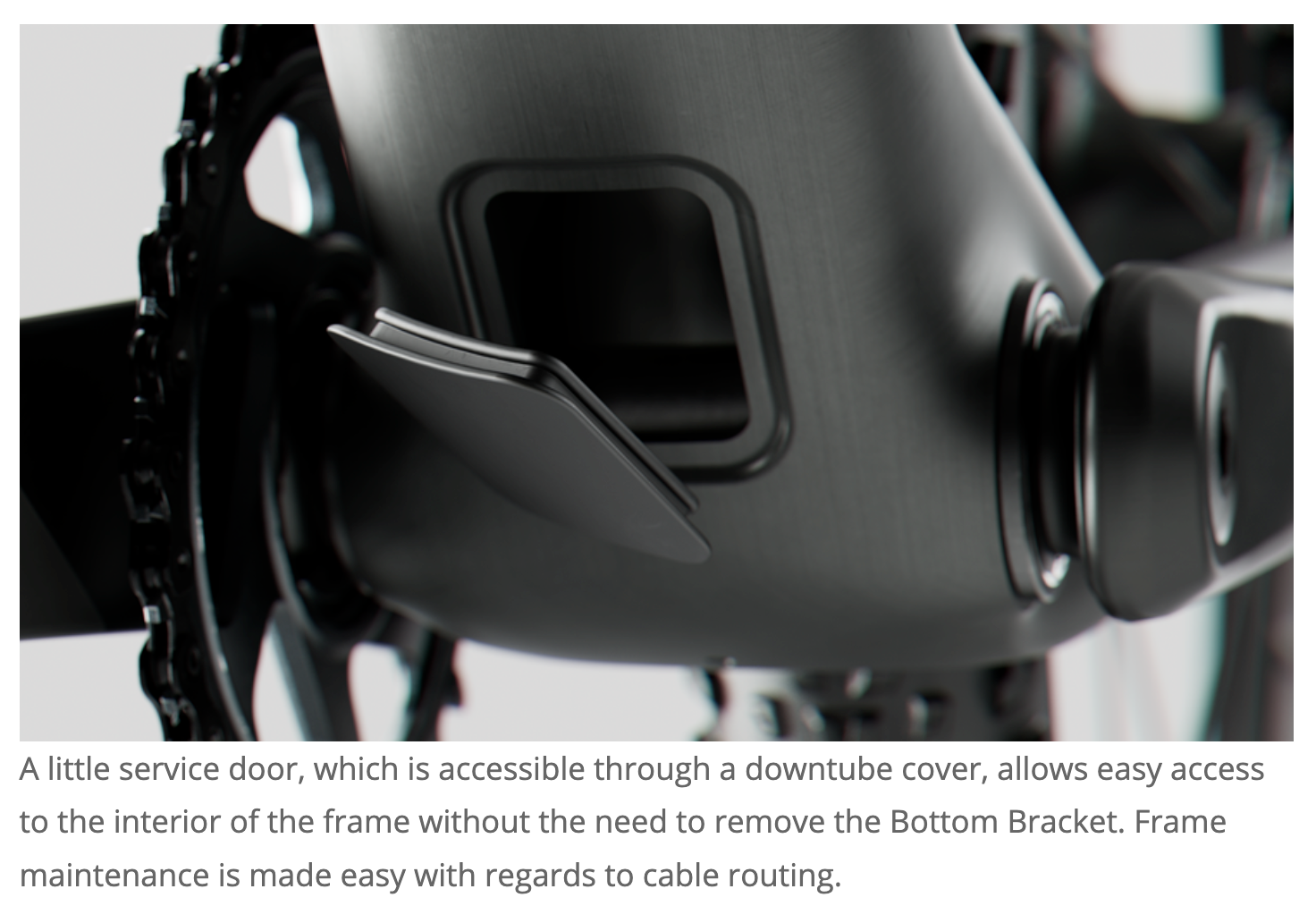

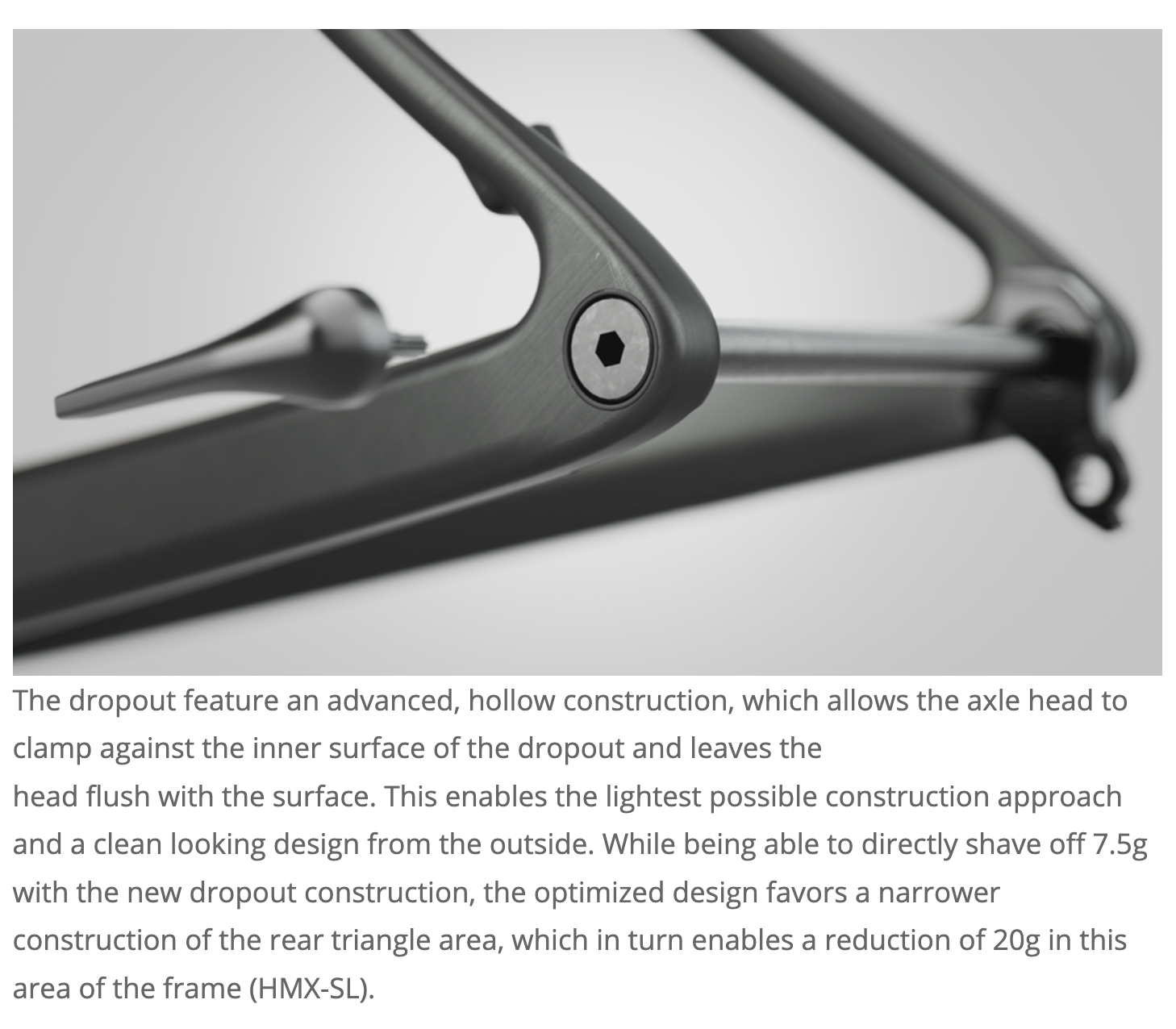

  BB92 / UDH Interface / 12x148mm with 55mm Chainline

  ---

• Fork

  RockShox Judy Silver TK Solo Air
  15x110mm QR axle / 42mm offset / Tapered Steerer
  Reb. Adj. / Lockout / 100mm travel

  ---

• Rear Derailleur

  SRAM NX Eagle 12 Speed

  ---

• Shifters

  SRAM SX Eagle Trigger

  ---

• Crankset

  SRAM SX Eagle DUB
  55mm CL / 32T

  ---

• BB-Set

  SRAM DUB PF 92 MTB Wide / shell 41x92mm

  ---

• Cassette

  SRAM SX-PG1210 / 11-50 T

• Cassette

  SRAM SX-PG1210 / 11-50 T

• Cassette

  SRAM SX-PG1210 / 11-50 T

• Chain

  SRAM CN SX Eagle

  ---

  Cassette
• SRAM SX-PG1210 / 11-50 T

  ---

• Brakes

  Shimano MT200 Disc Brake

  ---

• Rotor

  Shimano SM-RT10 CL / 180/F and 160/R

  ---

• Handlebar

  Syncros Alloy 6061
  T shape Flat / 9° / 740mm
  Syncros Performance XC lock-on grips

  ---

• Rims

  Syncros X-30SE / 32H / 30mm
  Tubeless ready

  ---

• Front Tire

  Schwalbe Smart Sam 29x2.35" / Active line

• Rear Tire

  Schwalbe Smart Sam 29x2.35" / Active line

  ---

• Approx weight in KG

  12.7 (with tubes)

• Max. System Weight

  128kg
  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

• Approx weight in LBS

  28 (with tubes)

  ---
