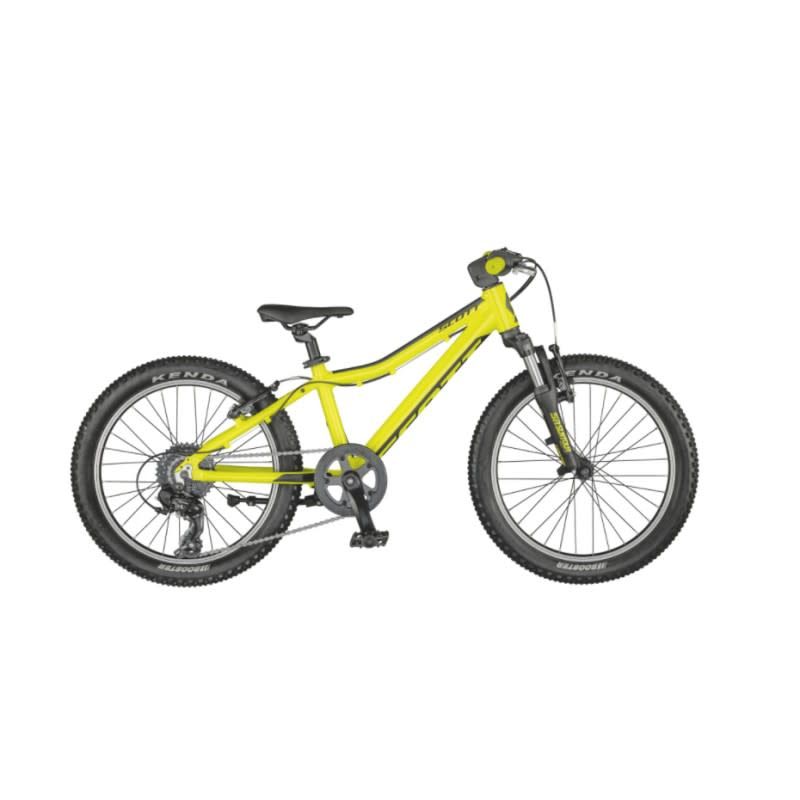

SCOTT Bike Scale 20 yellow (KH)
SKU 280856
$629.99
The SCOTT Scale 20 is our truly functional bike for kids who like a race-inspired style.
In stock
1
Save this product for later
SCOTT Bike Scale 20 yellow (KH)
UPC: 192820454719
Brand: Scott
Specs
| Frame | Scale 20 Junior Alloy 6061, Semi int. HT SCOTT dropout, V-Brake |
|---|---|
| Fork | SR Suntour XCT-JR 20 40mm travel Softer spring setup |
| Rims | Shining V-6NS |
| Hubs | Front: KT-122F, Nutted Rear: KT-122R, Nutted |
| Spokes | 15g, UCP, black |
| Tires | Front: Kenda K1227 Booster, 20x2.2", 30TPI Rear: Kenda K1227 Booster, 20x2.2", 30TPI |
| Bottom Bracket | Feimin, BB68, cartridge, square taper |
| Crankset | Prowheel, Alloy Crank 127mm 36T, w/CG PVG double cover |
| Shifters | Shimano SL-RS 36-7 Revo Shifter |
| Rear Derailleur | Shimano RD-TY300 7 Speed |
| Cassette/Freewheel | SunRace MFM300 7 Speed, 13-34T |
| Chain | KMC Z7 |
| Brakes | Lee-Chi TX-119L Kids specific |
| Brake Levers | Tektro JL-510 TS, RS |
| Handlebars | Junior Flat-Bar, Alloy 540mm, Syncros Youth 100/80 Grip |
| Stem | LEADTEC LCS-7130 50mm, 25.4mm clamp |
| Headset | Feimin FP-H807, 1 1/8" Semi Int. |
| Seatpost | Alloy, 26.8mm, 250mm |
| Saddle | Syncros Future Pro |
| Pedals | MARWI SP-700, w/Reflector |
| Accessories & Extras | Kickstand, Syncros Stem Protector |
Geometry
| 20" | ||
|---|---|---|
| A | Head Tube Angle | 69° |
| B | Head Tube Length | 100mm |
| C | Top Tube Horizontal | 450mm |
| D | Standover Height | 509.9mm |
| G | Wheel Base | 892.1mm |
| I | BB Center To Top Of Seattube | 280mm |
| J | Seat Angle | 70.4° |
| K | Chainstay | 370mm |
| N | Stem Length | 50mm |
Sizing
